Open PLC for microcontroller

even i work in Industrial Automation and Instrumentation ( and Electric )
( using so called Process Control Systems )
that what you think of
PLC Programmable Logic Controller
was never my thing,
but sure, some subcontractor used them and we linked them into the PCS via Modbus

---

but as Raspberry Pi and Arduino
move into Industrial Automation
i see PLC as ? a coding style ?

try
OPEN PLC for ESP

video

RPI4 download:
https://autonomylogic.com/download

wget https://github.com/Autonomy-Logic/openplc-editor/releases/download/v4.1.4/OpenPLC.Editor-4.1.4-ARM64.AppImage

chmod +x OpenPLC.Editor-4.1.4-ARM64.AppImage
./OpenPLC.Editor-4.1.4-ARM64.AppImage

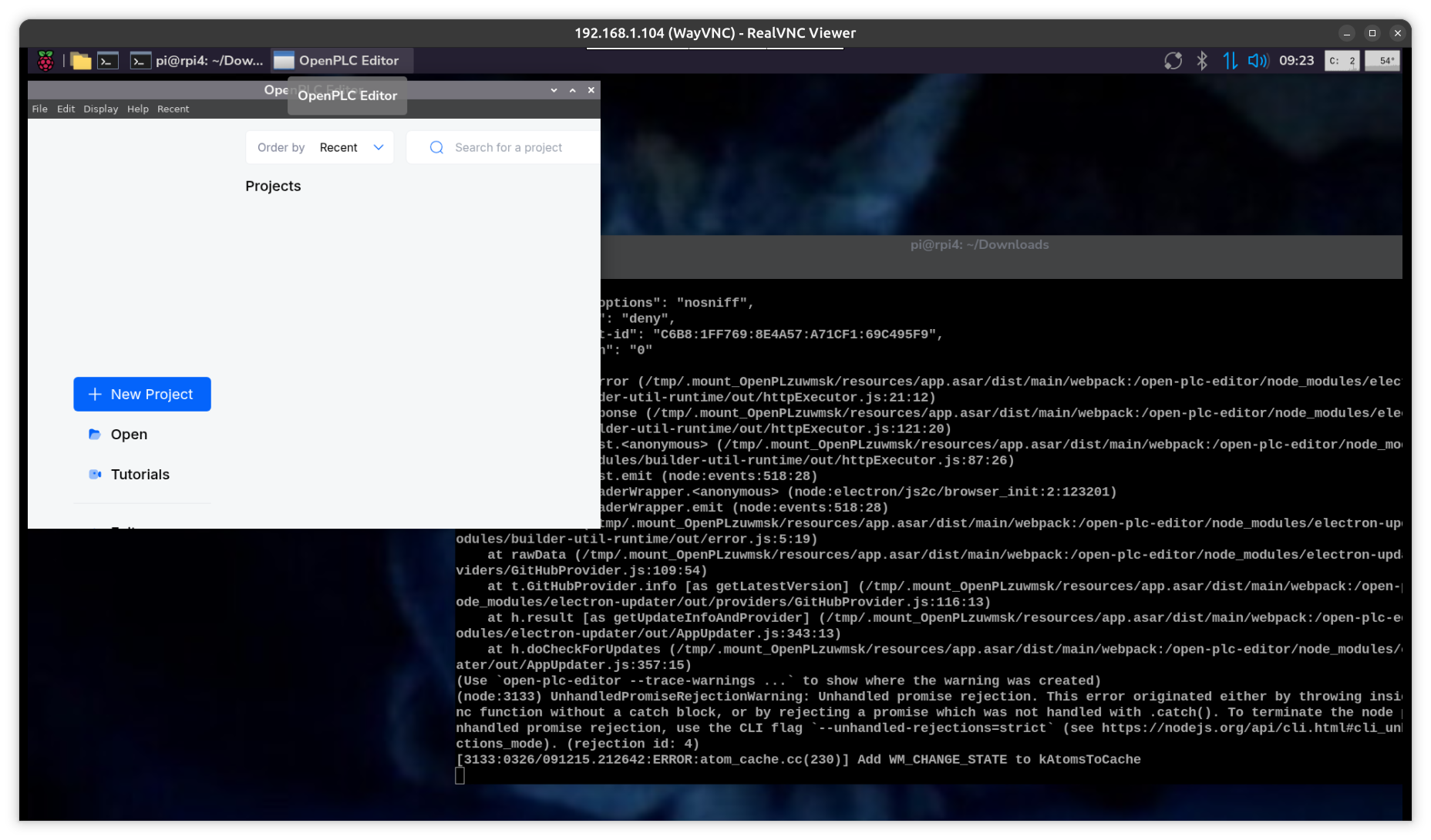

see many errors
but a window opens

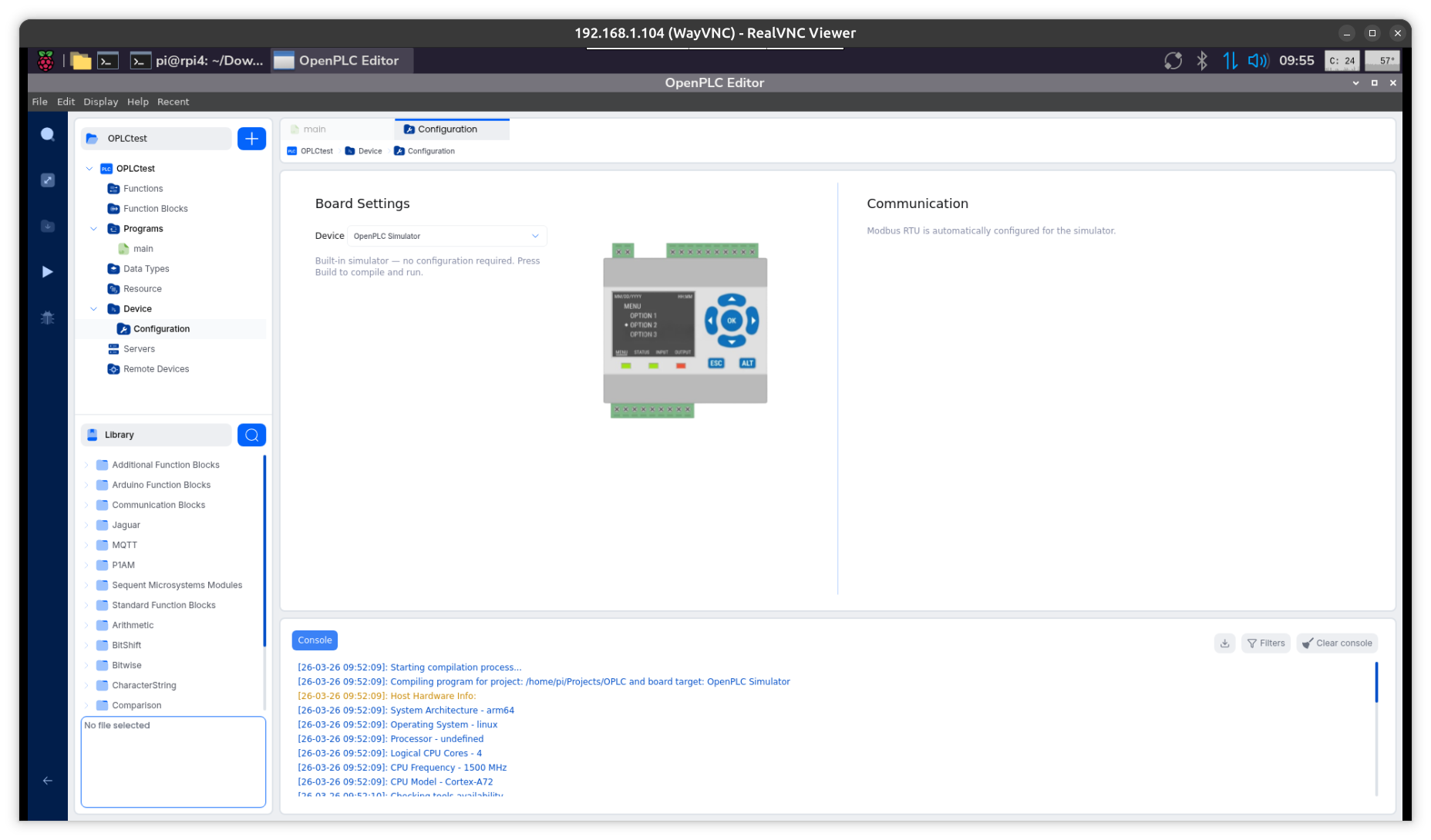

* open new project

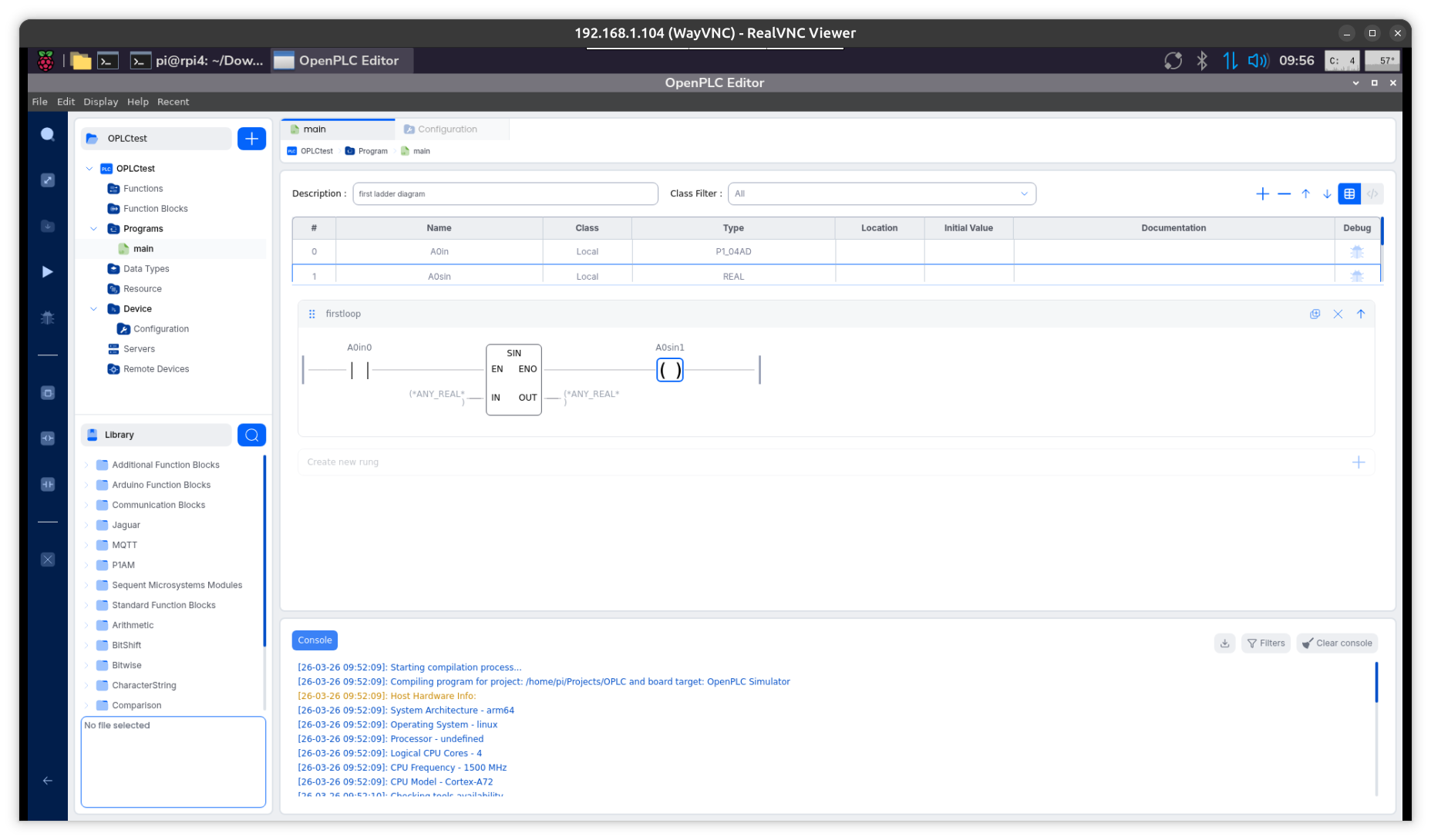

* * edit first test ladder diagram

---

other install way: ( will try later )
Step by Step
1. Clone the repository

git clone https://github.com/Autonomy-Logic/openplc-editor.git
cd openplc-editor

2. Install dependencies

npm install

3. Run the development server

npm run start:dev

---
