for special requirement
MODEL AQUARIUM

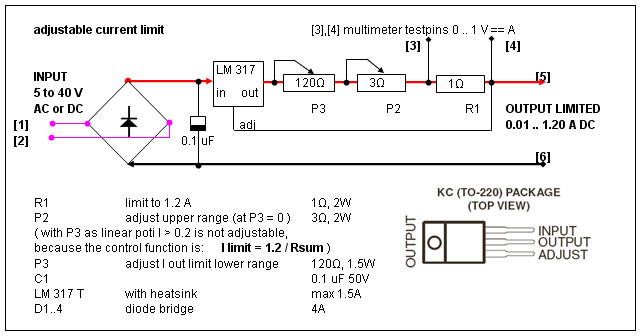

work on a current limit electronic

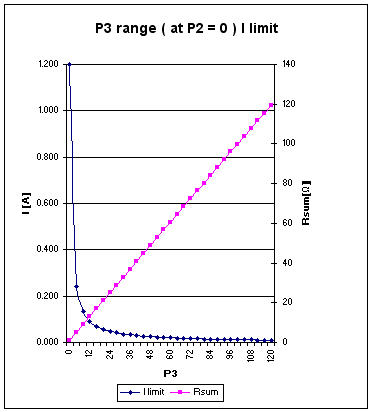

well, it works, but because the control thinks like this:
I limit = 1.2 / ( R1 + P2 + P3 )


the (higher) current is only with a second pot adjustable, if no LOG POT is used.

Now for newcomers, the supply voltage INPUT V(DC or AC/rms) can be calculated:

Vsmin = 2V diodes + 3V LMcontrol min + ( Rc (1 ..120ohm) + Rload ) * Ilimit

below that LM is not in current limit mode, above that the Higher Voltage generates only HEAT P= ( Vs - Vsmin ) * Ilimit [W] ( heatsink required! )
With that understanding the knowledge about the LOAD and the current limited
is critical for choosing the supply voltage in the rage 5 .. 40 V.

While this parts here on the island cost me about 10$
i think they are usually available for 5$.

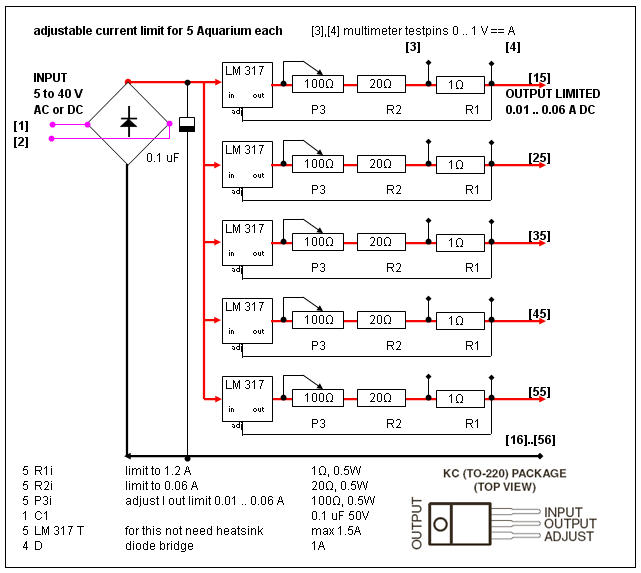

Here now the version for 5 Aquarium with adjustable current each ( 0.01 .. 0.06 A),
because no heat sink and no power resistors are needed, i estimate a overall price
of 10$.
