12 ARDUINO PROJECT: SD card DATACOLLECTION

From DFRobot
use the interface shield and a 4GB Kingston uSD card


Interface shield 453THB




4GB Kingston uSD card 500THB





for the software used the SD library from ARDUINO



the device should collect data ( A0,A1,A2) in an adjustable schedule

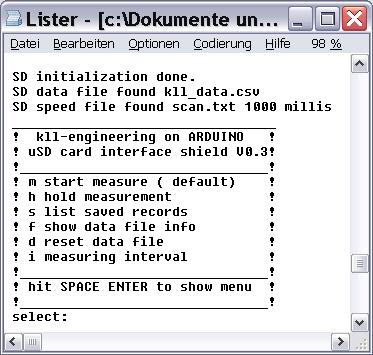

a easy MENU software allows





at power up, reset, start ARDUINO terminal

the sample speed setting is readback from a config file on uSD card



instead of that internal terminal software

( what always resets the ARDUINO)

i like to use the HTERM.



with this and the menu point

s list saved records

you can playback the recorded data to terminal and

save them there as terminal log ( even as ASCII EXCEL CSV file again )

( more easy as to check the data by cardreader, file copy..)



for the hardware:

i recheck the SD card interface between original ETHERNET shield

and that DFRobot interface shield

and found that on the original there are resistors used to

bring down the 5V AVR outputs to the 3V3 level of SD card power

while these are here missing it still seems to work.



data recording with ARDUINO?

well, there is no RTC, and a measurement data record without a timestamp

is questionable, so its of limited use.

the only timer is the millis(), a unsigned long value counting the milli seconds after last reset.

This number will overflow (go back to zero), after approximately 50 days.



I see a dedicated data collection shield at adafruit






pls see code



I mentioned above already the wiring of SD card reg. 5V / 3V3

but when i started to test uSD AND LCD

i run into trouble.

There is no problem with the pins / wiring.

There is no problem with the libraries.

But it does not work together because of POWER problems.

when there is communication with SD card, LCD dimms.

Or the SD card can not be init ( but not got damaged ).

Even with the SD card can not be used on the ethernetshield ( together with ethernet) for wiring reasons it is a similar problem.



anyhow i was not aware of that SD cards are so powerhungry, but should run on 3V3.???



next i want work on my own shield extension with instrument opamp amplifier



pls see layout using LM324



but it would be more easy if i use AD623
